P-16S Rescue System
Technical Data


Spreader

Drive technology:

Electronic rotary direct drive(non hydraulic)

Nominal input: 43.2 VDC

Dimensions with full control handle:

711 x 285 x 267 (±10 mm)

Operational weight incl. Battery Pack 1:

19.8 kg (±0.2)

Rotating head angle:  61°

Max. Spreading opening: 401 mm (±5mm)

Spreading force at base of arm teeth:

113.0 - 170.8 kN / 11.5 - 17.4 T








P16-S short control handle

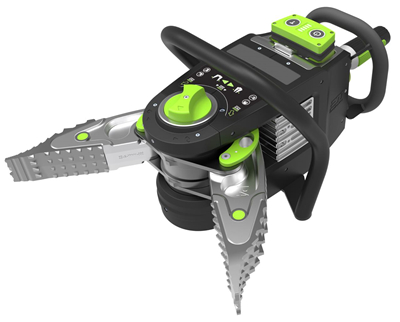

P16-Sfull control handle       (as the picture)


Cutter

Drive technology

 Electronic rotary direct drive(non hydraulic)

Nominal input

43.2 VDC

Dimensions with full control handle(L X W X H)

706 x 285 x 267 mm (±10mm)

Operational weight incl. Battery Pack 1

21.5 kg (±0.2)

Rotating head angle: 61°

Max. cutting opening147 mm (±5mm)

Reach : 118 mm (±5mm)

Max. cutting force¹: 981 kN / 100.0T





Battery

Nominal input:

43.2 V DC   2.6 Ah    112.3 Wh

Battery type: Lithium battery

Charging time: 1 hour

Dimensions (L x W x H) :

178 x 103 x 58 mm (±5 mm)

Weight: 1.0 kg

NFPA 1936: Compliant

Battery Spec.: IEC 60745-1 ANNEX K

                         IEC 62133-C1

                         UN 38.3


Battery Charger

Nominal output:  50.2 VDC  2.2 A

Nominal input:  100 - 240 VAC

Charging time : 1 hour

Using time: 9 hour

Dimensions(L X W X H) :

257 x 135 x 105 mm (±5mm)

 Weight:1.1 kg

Length with long plug: 1.9 m

Length with charging plug: 1.4m


Description

The P-16S unites the innovations of POWER HAWK’s aerospace gear technology with the latest Electronic Direct Drive (EDD) motor and lithium battery technology, resulting in a super compact and self‐contained battery‐powered rescue tool that delivers enormous spreading and cutting power for getting jobs done! Unmatched VERSATILITY and POWER has soared to new heights.
